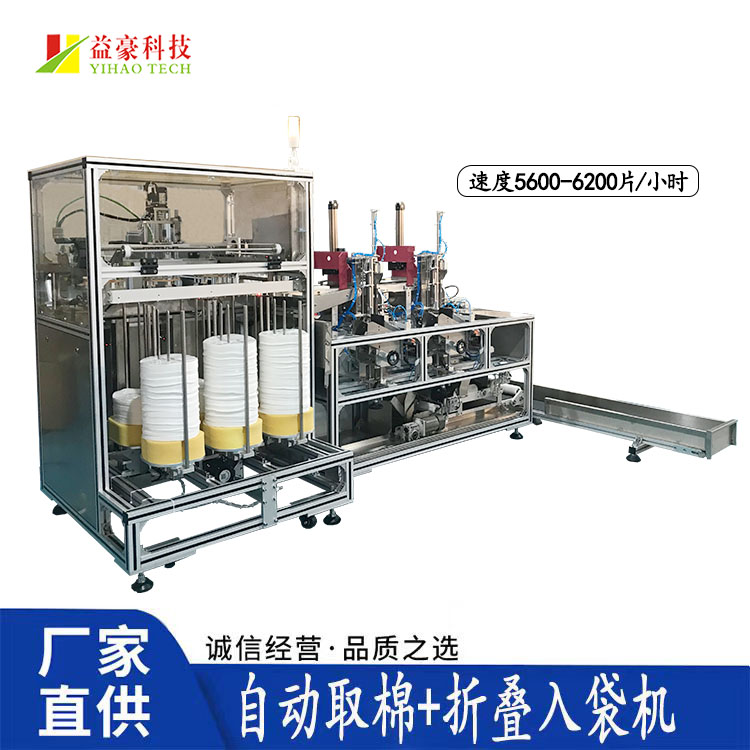

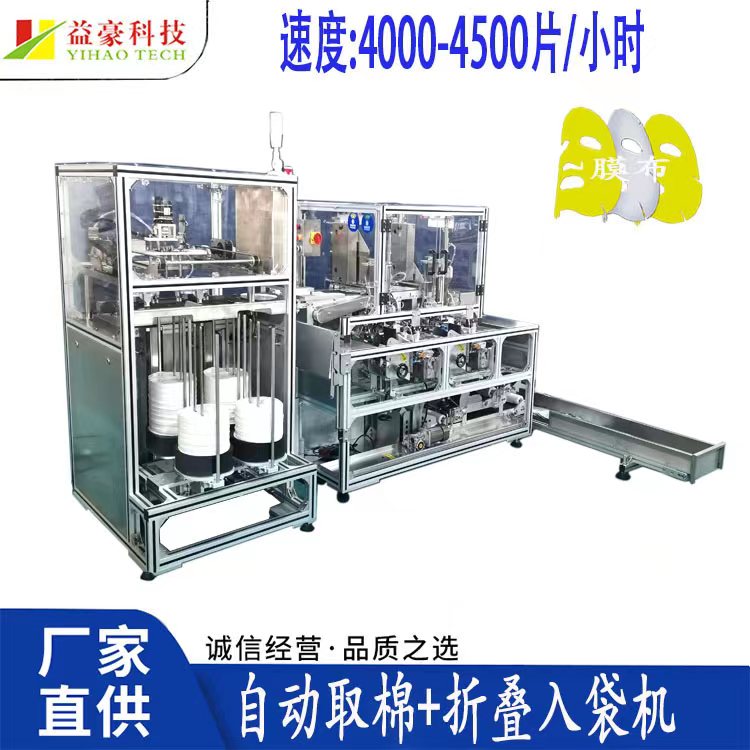

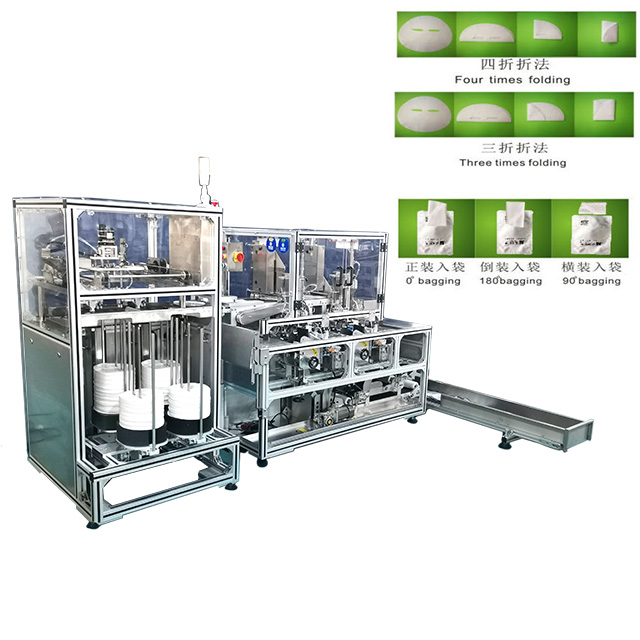

設備主要功能為面膜的取膜、發膜、在生產過程中只須將成沓的膜布放在治具上，設備完成自動取膜、發膜，實現了半自動折膜機的自動發膜，完全代替人工操作，改善了生產工人的勞動強度，且一人可同時操作多臺設備，有效提高生產效率，降低生產成本。
The main function is auto facial mask picking-up and feeding. Workers only need to put dozons of dry facial masks in the loader, machine could automatically complete facial mask picking-up and feeding, enables the semi-automatic mask folding machine with auto mask feeding, completely replace the manual operation, and reduced the labor strength of the workers. One worker can operate several machines at the same time, improving the production efficiency and reducing production costs.

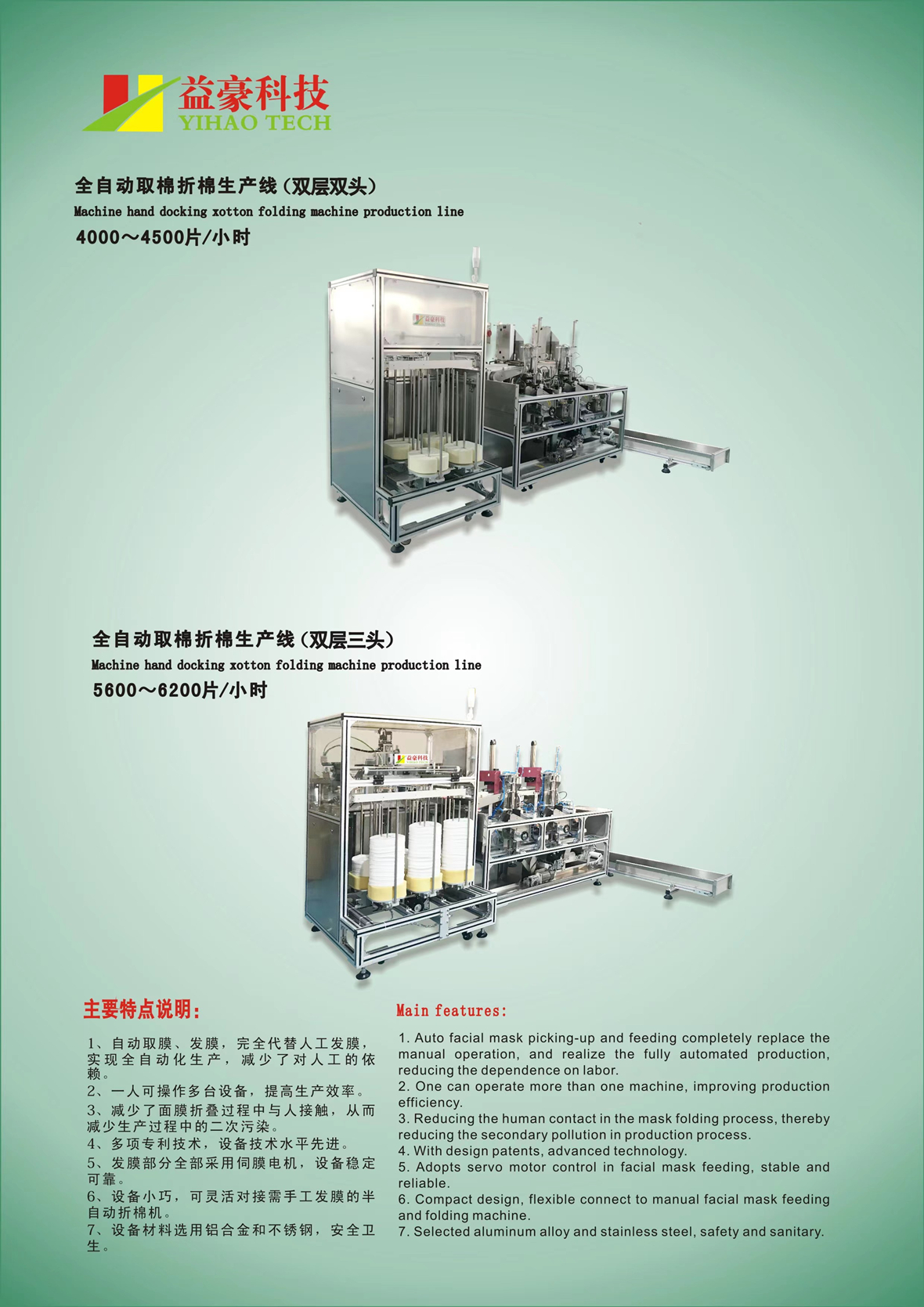

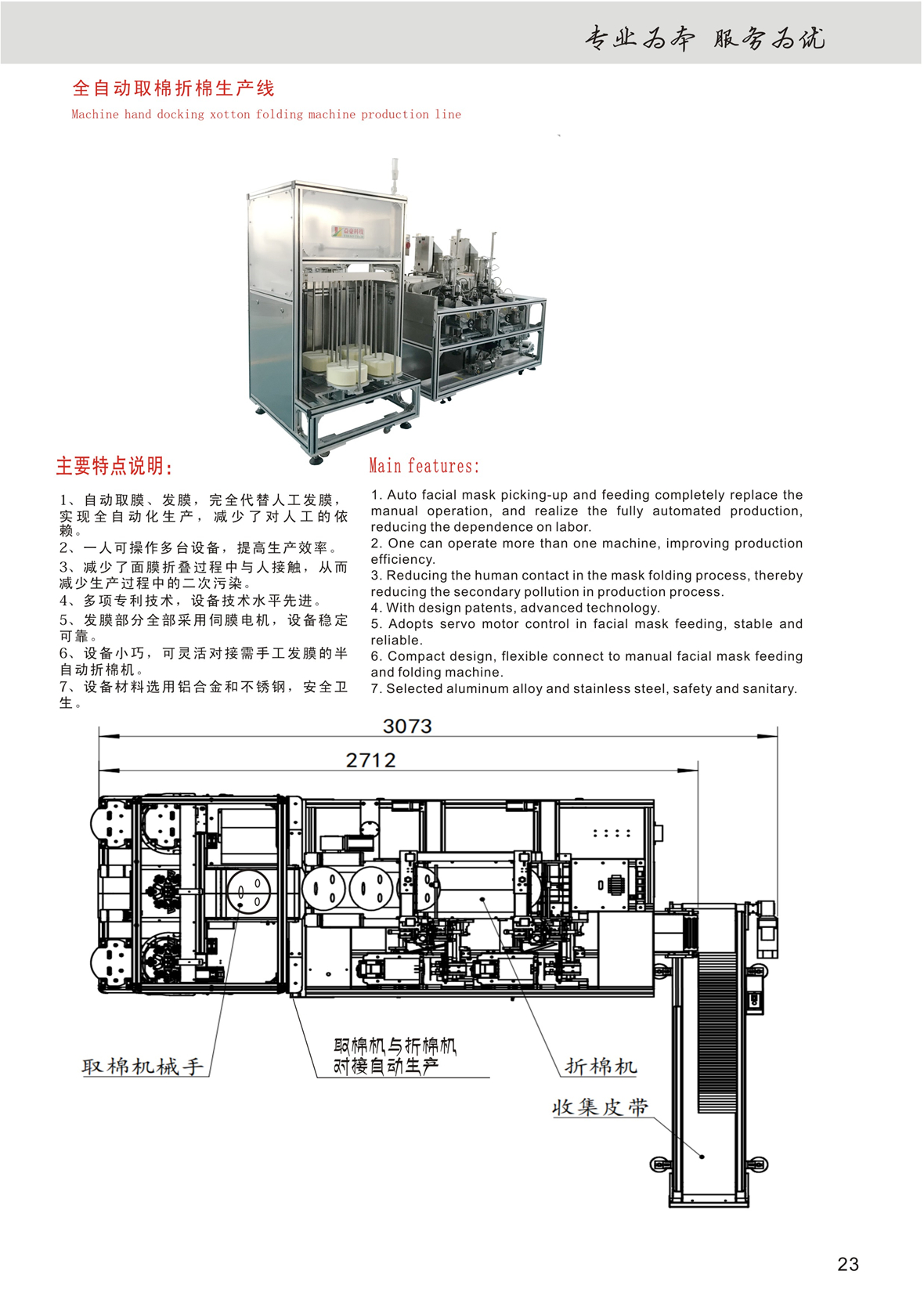

主要特點說明：Main features:
1、自動取膜、發膜，完全代替人工發膜，實現全自動化生產，減少了對人工的依賴。
2、一人可操作多臺設備，提高生產效率。
3、減少了面膜折疊過程中與人接觸，從而減少生產過程中的二次污染。
4、多項專利技術，設備技術水平先進。
5、發膜部分全部采用伺膜電機，設備穩定可靠。
6、設備小巧，可靈活對接需手工發膜的半自動折棉機。
7、設備材料選用鋁合金和不銹鋼，安全衛生。
1. Auto facial mask picking-up and feeding completely replace the manual operation, and realize the fully automated production, reducing the dependence on labor.
2. One can operate more than one machine, improving production efficiency.
3. Reducing the human contact in the mask folding process, thereby reducing the secondary pollution in production process.
4. With design patents, advanced technology.
5. Adopts servo motor control in facial mask feeding, stable and reliable.
6. Compact design, flexible connect to manual facial mask feeding and folding machine.
7. Selected aluminum alloy and stainless steel, safety and sanitary.
設備名稱 Machine Name | SY-J01 雙層翻轉機器手 Double Layer Facial Mask Sheet Flip-over Feeding Robot | SY-J02 單層膜布機器手 Single Layer Facial Mask Sheet Feeding Robot | SY-J03 雙層正取機器手 Double Layer Facial Mask Sheet Feeding Robot |
膜布層數 Facial Mask Sheet Layer | 二層(珠光膜+無紡布) （膜布朝下） Double layer (pearlized film and non-woven sheet, Non-woven sheet side down) | 單層無紡布 Single Layer ( non-wov en fabric) | 二層(珠光膜+無紡布) （膜布朝上） Double layer (pearlized film and non-woven sheet, Non-woven sheet side up) |
取膜效率 Feeding Capacity | 3000-4500片/小時 高速5600-6500片/小時 | ||
治具儲布數量 Loading capacity | 1000～1500PCS | ||
治具配套數量 Loading Device quantity | 2套 2 sets | ||
電源 Power Supply | 220V/1ph 50HZ | ||
總功率 Power Consumption | 0.5KW | ||
氣源 Air Consumption | 0.6Mpa 0.1 m3/min | ||
